Steelmate PTSC1 -  Rear Parking Sensors

The Steelmate PTSC1 is a reliable, entry-level 4-head rear parking sensor kit designed to enhance driver awareness and vehicle safety. Ideal for cars and vans, it features an advanced anti-false alarm system and can be programmed to ignore tow bars or rear-mounted spare wheels. An optional visual display can also be added for enhanced feedback.

Built for all-weather performance, the sensors operate in temperatures ranging from -40°C to +80°C and are housed in a heavy rainproof design. The 4-stage audible buzzer provides clear, progressive alerts as objects are detected between 0.3m and 1.5m behind the vehicle.

With simple installation and a rugged design, this system is perfect for drivers seeking dependable reversing assistance at an affordable price point.

Main Features:

• Rear 4 sensors for complete coverage
• 4-stage audible buzzer with 70–90dB output
• Weather-resistant and heavy rainproof design
• Wide operating temperature: -40°C to +80°C
• Patented anti-false alarm technology
• Easy to install with included tools and manual

Technical Specifications:

• Voltage: 9–16V
• Input Power: <4W
• Detection Range: 0.3–1.5m (rear)
• Operating Temperature: -40°C to +80°C

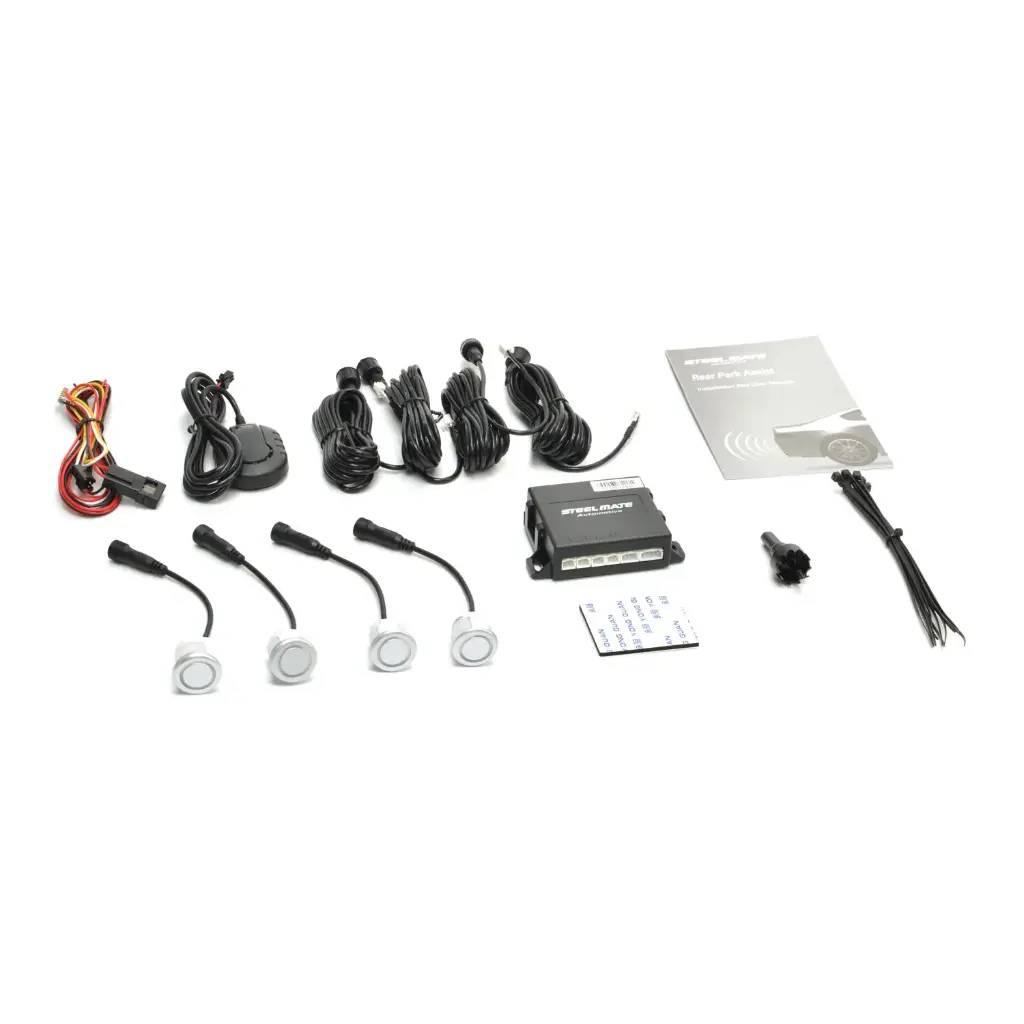

What’s in the Box:

• 4 x 14D-12 sensor heads (white or silver)
• 4 x 2.3m sensor cables
• 1 x ECU
• 1 x Power loom with integrated buzzer
• 1 x 18.8mm hole saw
• 1 x User/installation manual
