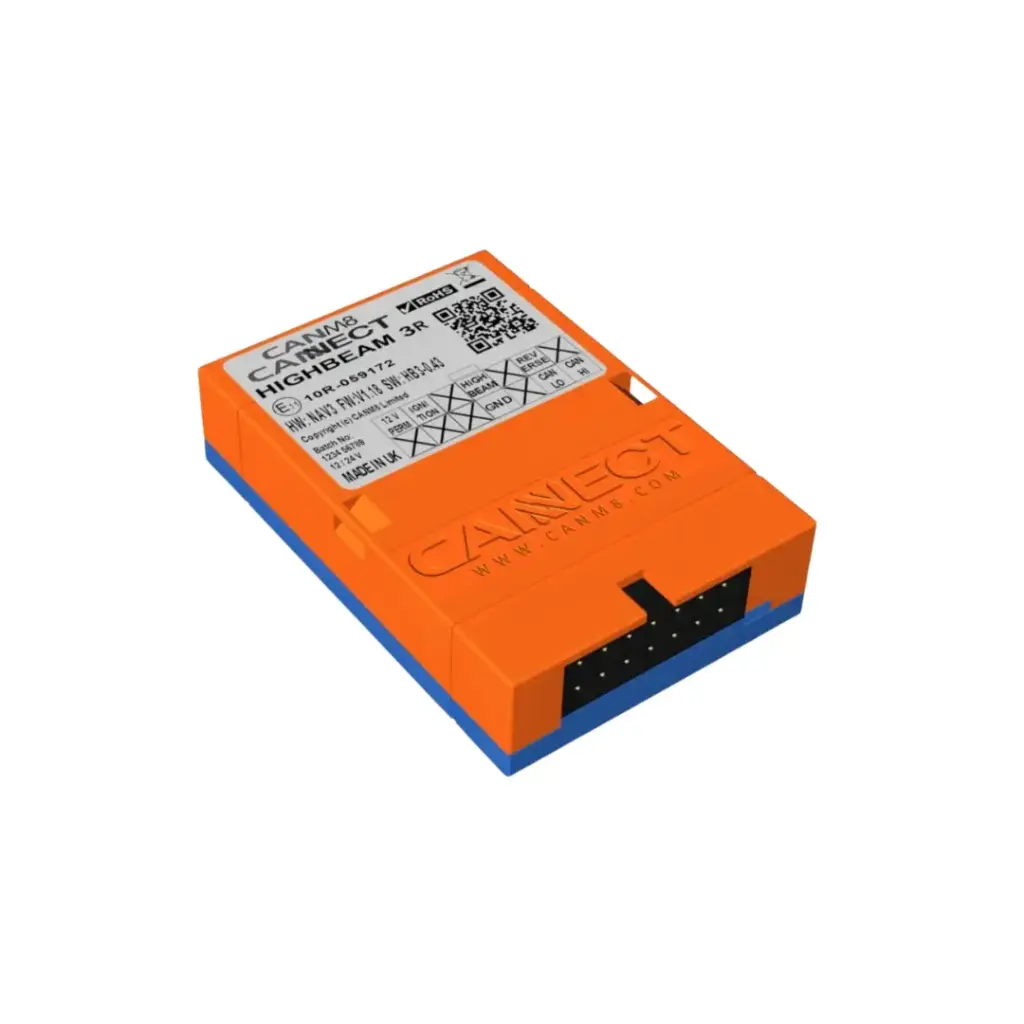

CANM8 CANNECT HIGHBEAM-4
4-Output CAN Bus Interface for High Beam, Ignition, Reverse & Side Lights
The CANNECT HIGHBEAM-4 is a compact, high-performance CAN Bus interface designed for quick and reliable detection of high beam activity in vehicles with CAN Bus wiring.
It also provides additional outputs for:
Ignition-On
Side Lights
Reverse Gear
Key Features
"Key-In" Detection: Keeps the ignition-on output active even when the ignition is switched off, as long as the key remains in the ignition (on compatible vehicles).
Mini Wiring Connector: Unplugs for easy installation.
4 Dedicated Outputs: Each rated at 12V / 24V, 1A max.
Multi-Function Status LED: For instant diagnostics.
LED Status Indicators
| LED State | Meaning |
|---|---|
| Flashing Red | Searching for CAN data |
| Solid Red | CAN data received, vehicle not yet identified |
| Solid Green | CAN data received, vehicle recognised |
| Flashing Green | Vehicle speed detected |
Installation Overview
Connect CAN HI & CAN LO to the vehicle’s CAN Bus wiring.
Connect to a fused 12V / 24V permanent power supply and a good chassis ground.
Use the quick-release mini wiring connector for fast installation and servicing.
Wiring Harness Details
| Wire Colour | Connection | Details |
|---|---|---|
| RED | Permanent Power | 12V / 24V via 5A (12V) / 2A (24V) fuse |
| BLACK | Ground | Chassis ground |
| WHITE | CAN HI | Vehicle CAN HI wire |
| BLUE | CAN LO | Vehicle CAN LO wire |
| GREEN | High Beam Output | Active when high beam is on |
| PURPLE | Ignition-On Output | Active when ignition is on |
| BROWN | Reverse Output | Active when reverse gear is selected |
| ORANGE | Side Lights Output | Active when side lights are on |
SKU: D-CON-32124
