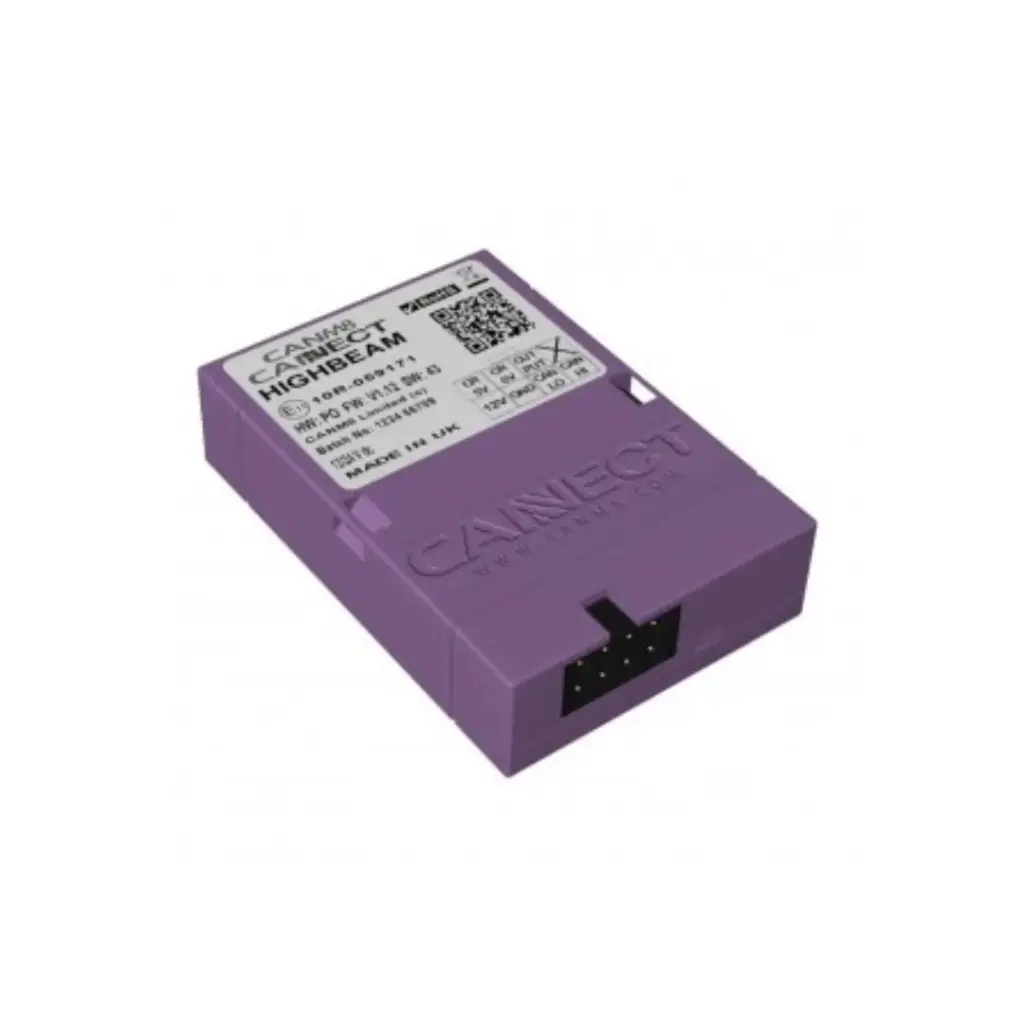

CANM8 CANNECT HIGHBEAM
Single-Output CAN Bus Interface for High Beam Activation
The CANNECT HIGHBEAM is a compact, single-output CAN Bus interface designed to instantly detect high beam activation in vehicles equipped with CAN Bus wiring.
Applications
Ideal for auxiliary driving lights that need to activate with the vehicle’s high beams via a relay.
Integrates seamlessly with the vehicle’s existing lighting system for clean, factory-style control.
Key Features
Simple Installation: Two CAN connections + fused permanent power and ground.
Compact Design: Fits easily in tight installation spaces.
Real-Time Diagnostics: Built-in multi-function LED for instant feedback.
LED Status Indicators
| LED State | Meaning |
|---|---|
| Flashing Red | Searching for CAN data |
| Solid Red | CAN data received, vehicle not yet identified |
| Solid Green | CAN data received, vehicle recognised |
| Flashing Green | Vehicle speed detected |
Installation Overview
Connect CAN HI & CAN LO to the vehicle’s CAN Bus wiring.
Connect to a fused permanent 12V power supply and a good chassis ground.
Use the quick-release mini wiring connector for easy installation and servicing.
Wiring Harness Details
| Wire Colour | Connection | Details |
|---|---|---|
| RED | Permanent Power | 12V via 5A fuse |
| BLACK | Ground | Chassis ground |
| WHITE | CAN HI | Vehicle CAN HI wire |
| BLUE | CAN LO | Vehicle CAN LO wire |
| PURPLE | High Beam Output | 12V (max 1A) when high beam is active |
SKU: D-CON-32123
