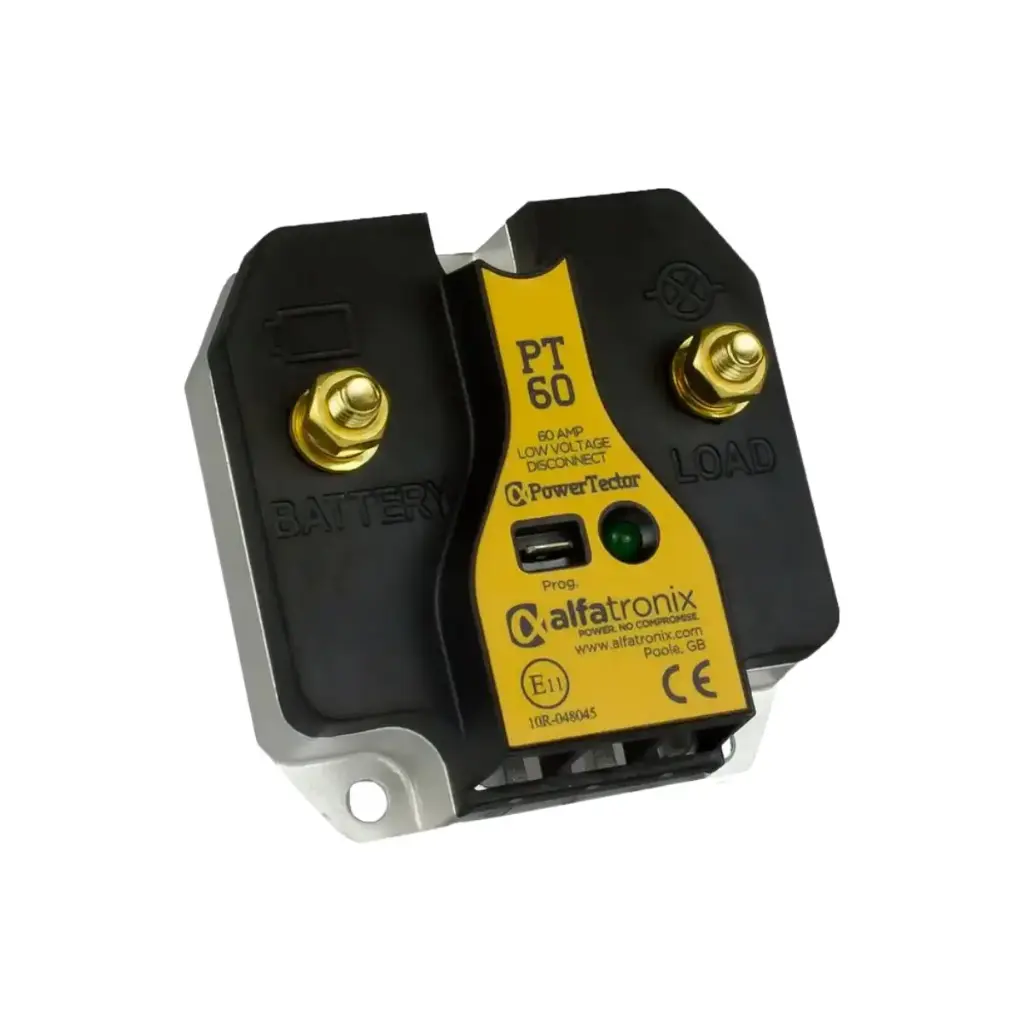

PT60 Battery Guard - 60 Amp 12/24V

The PT60 PowerTector Battery Guard is a solid-state protection device designed to safeguard vehicle and equipment batteries from deep discharge. Monitoring the source voltage, it automatically disconnects loads if the battery voltage drops below a pre-set level, ensuring enough power remains to start the engine or maintain other critical systems. By preventing total discharge, it also extends the service life of lead-acid batteries.

Built for demanding automotive and commercial applications, the PT60 offers 60A continuous power handling, IP65 ingress protection, and simple programming options for setting disconnect voltages. With LED status indication, M6 brass bolt connections, and compatibility with ignition or manual switch operation, it delivers reliable, professional-grade battery protection.

Key Features:

• 60A continuous power rating

• Input voltage range: 9–32VDC (auto referencing)

• IP65-rated for durability in harsh environments

• LED indicator shows operational status

• Programmable disconnect voltages to suit application

• Ignition or manual switch control

• M6 brass bolt connections

• Supports audible/visual alarms for low-voltage warnings

• Compact design: 76 × 78 × 33mm

Also available in a timed version, which disconnects the load after a preset period once the ignition is turned off.
