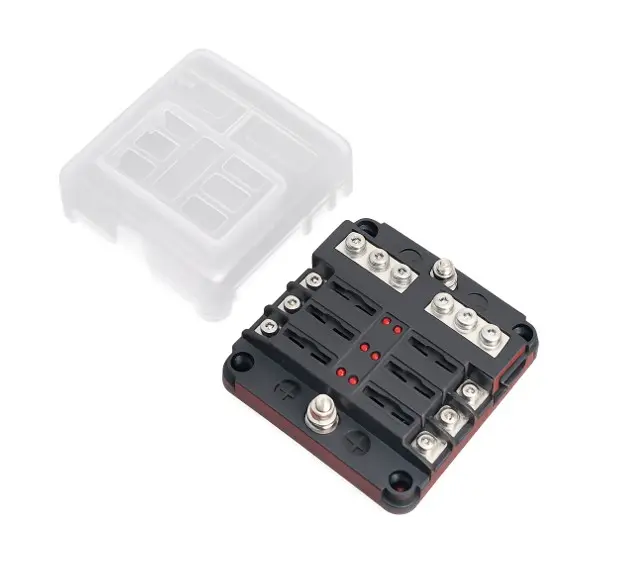

6 Way LED Fuse Box for Standard Blade Fuses with Warning Light and Bus Bar

Individual Dimensions: 80mm (W) × 38mm (H) × 83mm (L)

Optimal Conductivity

6-circuit fuse block for ATC/ATO (mid-size) blade fuses, with a dedicated positive and negative terminal for each circuit. Rated up to 32V DC, 30A per circuit, and 100A total per panel.

LED Safety Indicators

Built-in red LED indicators illuminate when a fuse blows, making fault detection fast and hassle-free.

Note: Fuses are not included.

Protective Fuse Cover

Includes a transparent, splash- and dust-resistant cover with a push-latch system for quick access and extra protection for both the fuse block and fuses.

Safe & Secure Installation

Easy to mount using 4 pre-moulded fixing holes. Features marine-grade stainless steel input/output screws for strong corrosion resistance and reliable long-term performance.

Wide Applications

Supplied with multi-function circuit label stickers for clean identification and easier troubleshooting. Ideal for vehicles and outdoor electrical setups including cars, marine, buses, ships, tankers, subways, and more.

Positive & Negative Terminal Design

Plenty of terminals for tidy wiring—positive terminals accept ring terminals securely, while the integrated negative bus allows matching negatives to terminate on the same block. Includes a separate ground connection for routing to a battery negative or common chassis/frame point.
